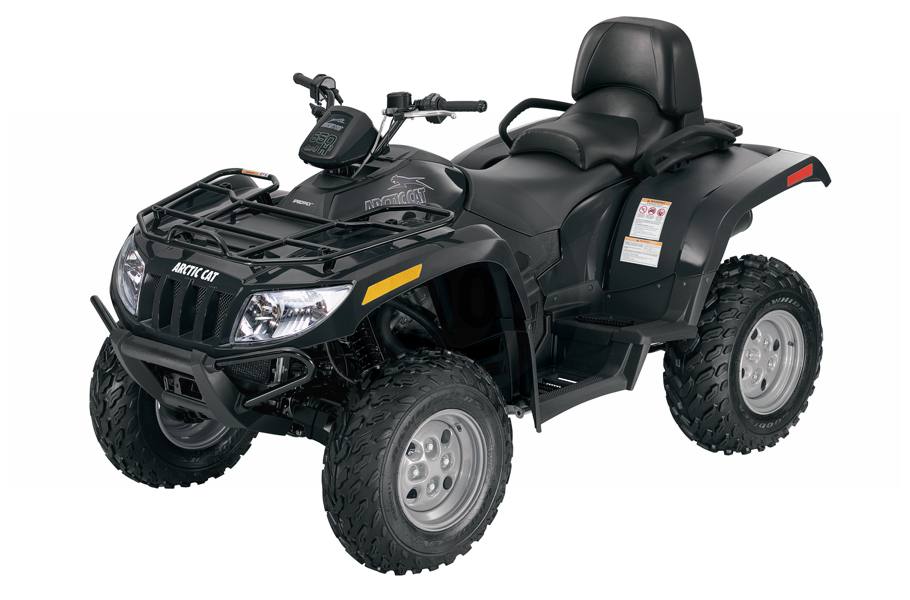

2008 Arctic Cat 650 H1 4x4 Automatic TRV
Request a Quote Financing Calculator Request a Brochure
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

A PACK-MULE WITH HORSEPOWER.


Just how much can she haul? Lets find out. Off with the passenger seat and on with the 200-lb.-capacity rear Speedrack. Switch into pickup mode with the heavy-duty cargo box.

  • Duramatic Automatic Transmission: Responsive acceleration and engine breaking come from this powerplant designed to maintain consistent performance come rain, shine or revving.
  • Three-In-One: The TRV Plus comes equipped with a passenger seat and secure-grip handrails. The cushioned seatback and integrated footrests provide loads of comfort. An easy pin-pull removal system lets you swap the passenger for a 200-lb.-capacity rear Speedrack. Another option, the heavy-duty cargo box, is a must-have if you plan to put your TRV to work.
  • 2-up Seating: Our removable raised backseat is cushioned for extra comfort. Improved ergonomics and an easy pin-pull removal system invite you to transform the TRV into a single-rider vehicle with either the rock or rear box attachments.
  • Rear Box: Remove your tandem seat or optional rear SpeedRack to equip your TRV with a full-sized cargo box. This heavy-duty hauler has a rear lift gate and is light enough for one person to install.
  • Extended Range: More time on the trail and less at the pump. The new, larger 6.5 gal. fuel tank is here to help you explore far and away without a care in the world.
  • Footrests: Integrated footrests give both riders secure and smooth footing.
Specifications
  • Displacement (cc): 641
  • Engine Type: SOHC, 4-Stroke, 4-Valve
  • Bore & Stroke (mm): 98 x 85
  • Cooling System: Liquid w/Fan
  • Transmission: Automatic CVT w/EBS
  • Drive System: 2/4 WD + Diff Lock
  • Overall Width (in./cm): 47.5/121
  • Overall Height (in./cm): 49.3/125.2
  • Overall Length (in./cm): 93/236.2
  • Wheelbase (in./cm): 58/147.3
  • Suspension Travel — Front (in./cm): 8/20.3
  • Suspension Travel — Rear (in./cm): 8/20.3
  • Ground Clearance (in./cm): 10/25.4
  • Suspension Type — Front: Double A-Arm
  • Suspension Type — Rear: Double A-Arm
  • Front Brakes: Hydraulic Disc
  • Rear Service Brake: Hydraulic Disc
  • Tires — Front: 25x8-12
  • Tires — Rear: 25x10-12
  • Wheel Width — Front (in./cm): 7/17.8
  • Wheel Width — Rear (in./cm): 8/20.3
  • Max Fuel Capacity (gal./liters): 5.5/20.8
  • Rack Capacity — Front (lbs./kg): 100/45.4
  • Rack Capacity — Rear (lbs./kg): 200/90.8 opt
  • Towing Capacity (lbs./kg): 1050/477
  • Alternator Capacity (amps): 25
  • Speedometer: Digital
  • Odometer: Digital
  • Dry Weight (lbs./kg): 724/328.4
  • Min. Operator Age: 18

Specifications

Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 641 cc
Bore x Stroke 98 x 85 mm
Engine Cooling Liquid w/Fan
Alternator 25 amps
Chassis
Front Suspension Double A-Arm
Front Travel 8 in. (20.3 cm)
Front Brake Type Hydraulic Disc
Front Tires 25x8-12
Rear Travel 8 in. (20.3 cm)
Rear Suspension Double A-Arm
Rear Brake Type Hydraulic Disc
Rear Tires 25x10-12
Dimensions/Capacities
Dry Weight 724 lbs. (328.4 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.8 kg) opt.
Towing Capacity 1050 lbs. (477 kg)
Fuel Capacity 5.5 gal. (20.8 l)
Ground Clearance 10 in. (25.4 cm)
Machine Dimensions (LxWxH) 93" x 47.5" x 49.3" (236.2 x 121 x 125.2 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT w/EBS
General
Speedometer Digital
Odometer Digital
Colors Black, Red, Arctic Green
