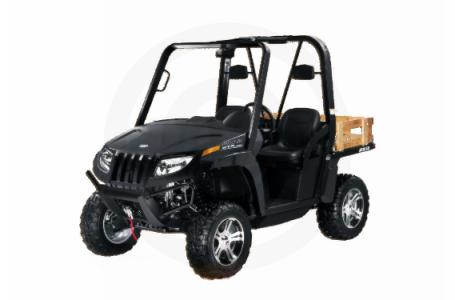

2009 Arctic Cat Prowler XTX 700 H1 EFI LE
Request a Quote Financing Calculator Request a Brochure
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Stand apart. And above.


Get more done - and look good doing it. The 700 H1 EFI engine can trudge through any task you put before it. The rear flatbed with stake sides, 3000-lb. winch and 2" ball receiver hitch make hauling nearly anything and everything more manageable than ever. And the Cat™ Black Metallic automotive paint and heavy-duty aluminum rims make every glance well worth it.

  • 700 H1 EFI Engine: Race-bred 695cc liquid-cooled EFI features a single overhead cam and a single cylinder. The "H" stands for its hemisperical combustion chamber, which delivers more efficient combustion resulting in better performance. Electronic Fuel Injection ensures easy starts and consistent performance in various climates or altitudes. Push the throttle with this one, it answers big-time.
  • New 14" Machine Aluminum Rims: Newly styled heavy-duty polished aluminum rims with painted black inlays. These sporty rims will grab attention and won't let go.
  • Electric 2WD/4WD and Front Differential Lock: When the going gets tough, electric shift allows the rider to shifft from 2-wheel drive to 4-wheel drive on the fly with just a push of a button. For maximum traction, activate the front differential lock. Simply stop, pull the lever, and work you way out.
  • Turf Saver Differential: The Detroit Locker differential is designed to unlock as you turn the vehicle. It allows rear tires to rotate at varying speeds to avoid damaging your lawn. When the going gets tough the locker engages to provide traction to both rear tires.
  • Towing Capacity: With a receiver hitch on both front and back, this machine is rated to tow 1500 lbs. So go ahead, launch your fishing boat, move that snowmobile trailer, or haul hay, wood, building or landscaping materials with one of our 2-wheel cargo trailers.
Specifications
  • Displacement (cc): 695
  • Engine Type: SOHC, 4-Stroke, 4-Valve
  • Bore & Stroke (mm): 102 x 85
  • Cooling System: Liquid w/Fan
  • Transmission: Automatic CVT w/EBS, Hi/Lo Range & Reverse
  • Drive System: 2/4 WD + Electric Diff Lock
  • Overall Width (in./cm): 60.0/152.4
  • Overall Height (in./cm): 77.5/196.9
  • Overall Length (in./cm): 118.5/301.0
  • Wheelbase (in./cm): 75/190.5
  • Suspension Travel — Front (in./cm): 10/25.4
  • Suspension Travel — Rear (in./cm): 10/25.4
  • Ground Clearance (in./cm): 12.5/31.7
  • Suspension Type — Front: Double A-Arm
  • Suspension Type — Rear: Double A-Arm
  • Front Brakes: Hydraulic Disc
  • Rear Service Brake: Hydraulic Disc
  • Tires — Front: 26x9-14
  • Tires — Rear: 26x11-14
  • Max Fuel Capacity (gal./liters): 8.2/30
  • Rack Capacity — Front (lbs./kg): N/A
  • Rack/Box/Flatbed Capacity — Rear (lbs./kg): 600/272
  • Under-Hood Capacity (lbs./kg): 25/11.4
  • Towing Capacity (lbs./kg): 1500/680.4
  • Alternator Capacity (amps): 25
  • Speedometer: Analog
  • Odometer: Digital
  • Dry Weight (lbs./kg): 1217.3/551.9
  • Minimum Operator Age: 16
  • Available Colors: Cat Black Metallic Paint
  • Special Features: Rear Turf Saver Differential, Tilt Steering
NOTES:

Specifications subject to change without notice.


Specifications

Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 695 cc
Bore and Stroke 102 mm x 85 mm
Cooling Liquid w/Fan
Chassis
Front Suspension Double A-Arm
Front Brakes Hydraulic Disc
Front Tire 26x9-14
Rear Suspension Double A-Arm
Rear Brakes Hydraulic Disc
Rear Tire 26x11-14
Dimensions
Dry Weight 1250 lbs (556.8 kg)
Front Travel 10 in. (25.4 cm)
Fuel Capacity 8.2 gal (30 gal)
Rear Travel 10 in. (25.4 cm)
Wheelbase 75 in. (190.5 cm)
Ground Clearance 12.5 in. (31.7 cm)
Box Capacity 600 lbs (272 kg)
Rack Capacity 600 lbs (272 kg)
Towing Capacity 1500 lbs (680.4 kg)
Transmission
Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
Drive System 2/4 WD + Electric Diff Lock
General
Speedometer Analog
Odometer Digital
Colors Cat Black Metallic Paint

Compare Models

 Print








Year 2009
Manufacturer Arctic Cat
Model Prowler XTX 700 H1 EFI LE
Style Side x Side
MSRP* $11,989.00
Chassis
Front Suspension Double A-Arm
Front Brakes Hydraulic Disc
Front Tire 26x9-14
Rear Suspension Double A-Arm
Rear Brakes Hydraulic Disc
Rear Tire 26x11-14
Dimensions
Dry Weight 1250 lbs (556.8 kg)
Front Travel 10 in. (25.4 cm)
Fuel Capacity 8.2 gal (30 gal)
Rear Travel 10 in. (25.4 cm)
Wheelbase 75 in. (190.5 cm)
Ground Clearance 12.5 in. (31.7 cm)
Box Capacity 600 lbs (272 kg)
Rack Capacity 600 lbs (272 kg)
Towing Capacity 1500 lbs (680.4 kg)
Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 695 cc
Bore and Stroke 102 mm x 85 mm
Cooling Liquid w/Fan
Compression Ratio
Fuel System
Ignition
General
Speedometer Analog
Tachometer
Odometer Digital
Colors Cat Black Metallic Paint
Warranty
Transmission
Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
Drive System 2/4 WD + Electric Diff Lock
